Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
| Toepassing: | Koeling | Kleur: | Zwart |
|---|---|---|---|
| Type: | Hermetisch | Koelmiddel: | R404a |
| Merk: | Copeland | model: | Zr125kce-tfd-522 |
| Fase: | 3 | Voltage: | 220V/380V |
| Verbinding: | Rotolock | Paardmacht: | 10.5HP |
| Hoog licht: | De Compressoren van de Copelandr410a Koeling,Zr125kce-tfd-522 |
||

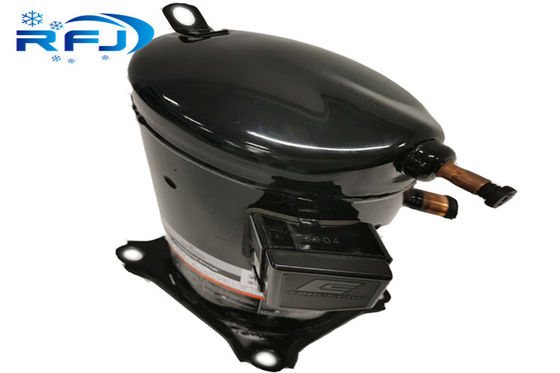

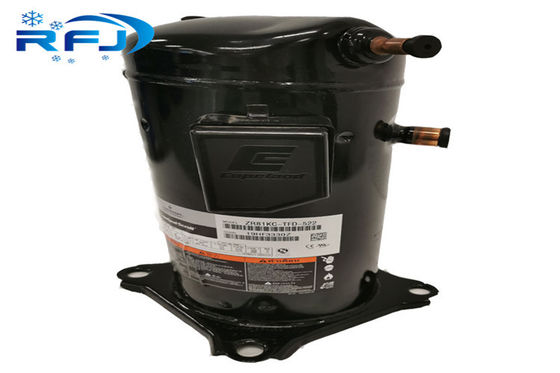

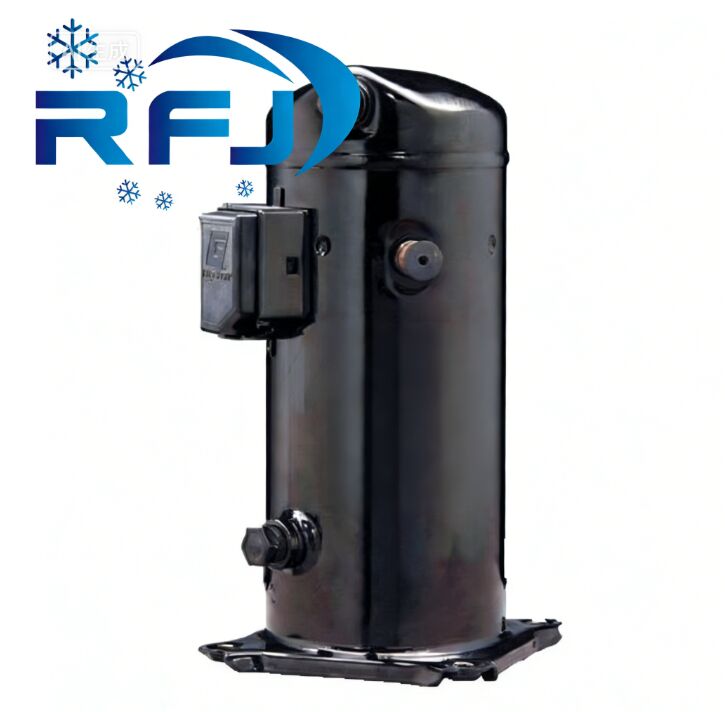

Copeland scroll r410a ZR125KCE-TFD-522 for refrigeration compressors
1.Products introdutions:
Refrigeration Type:R-134a, R-407C
Cooling Efficiency (EER):UP TO 11.6
Phase:3
Capacity Range (BTU):51500-106000
Voltage@Hz:380/420@50, 460@60
Application:Air Conditioning
Refrigerant Frequency(Hz) Phase Voltage Application
R-134a HFC 60 3 460 Air Conditioning
R-407C HFC 60 3 460 Air Conditioning
R-134a HFC 50 3 380/420 Air Conditioning
| brand | copeland |
| model | ZR125KCE-TFD-522 |
| horse power | 10 |
| refrigerant | R410a |
| power source | 380/420V |
| Phase | 1 |
| Color | Black |
| Connection | Rotolock |
| TYPE | COPELAND SCROLL COMPRESSOR |
| MOQ | 1 |
| Technical data | |
| Displacement [m³/h]: | 29,1 |
| Sound power [dBA]: | 74 |
| Sound pressure level [dB]: | 63 |
| Net Weight [kg]: | 61,2 |
| Gross Weight [kg]: | 72 |
| Oil charge [dm³]: | 3,3 |
| Maximum high pressure [bar]: | 32 |
| Maximum standstill pressure [bar]: | 20 |
| Minimal lowside temperature [°C]: | -35 |
| Maximum lowside temperature [°C]: | 52 |
| PED category: | 2 |
| Electrical data | |
| Power supply [V/~/Hz]: | 380-420/3/50Hz |
| Locked rotor current [A]: | 118 |
| Max. operating current [A]: | 19,6 |
| Winding resistance [Ω]: | 1,2 |
| Connections | |
| inches | |
| Suction connection with supplied sleeve: | 1 3/8" |
2.Detail introduction:
| MODEL | HP | CAPACITY(W) | INPUT POWER(KW) | INPUT CURRENT(A) | NET WEIGHT(KG) | HEIGHT(MM) | SUCTION |
| ZR24K3-TFD-522 | 2 | 5920 | 1.87 | 4.3 | 25.9 | 383 | 19/12 |
| ZR28K3-TFD-522 | 2.5 | 6910 | 2.15 | 5 | 26.3 | 383 | 19/12 |
| ZR34K3-TFD-522 | 2.8 | 8200 | 2.52 | 5.7 | 28 | 406 | 19/12 |
| zr36KC-TFD-522 | 3 | 8900 | 2.7 | 5.7 | 28 | 406 | 19/12 |
| ZR42K3-TFD-522 | 3.5 | 10100 | 3.12 | 7.1 | 28.6 | 419 | 19/12 |
| ZR47K3-TFD-522 | 4 | 11500 | 3.53 | 7.2 | 28.6 | 436 | 22/12 |
| ZR54KC-TFD-522 | 4.5 | 12900 | 4.03 | 8.7 | 35.4 | 457 | 22/12 |
| ZR57KC-TFD-522 | 4.8 | 13700 | 4.16 | 8.7 | 35.4 | 457 | 22/12 |
| ZR61KC-TFD-522 | 5 | 14600 | 4.43 | 10 | 35.8 | 457 | 22/12 |
| ZR68KC-TFD-522 | 5.8 | 16400 | 4.97 | 12.1 | 38.1 | 457 | 22/12 |
| ZR72KC-TFD-522 | 6 | 17400 | 5.25 | 12.1 | 38.1 | 451 | 22/12 |
| ZR81KC-TFD-522 | 6.8 | 19690 | 5.83 | 15 | 40.9 | 462 | 22/22 |
| ZR84KC-TFD-522 | 7 | 20330 | 6.14 | 15 | 56.7 | 497 | 22/22 |
5.Scroll Compressors:
When Emerson first pioneered the use of scroll technology in compressors, it changed the industry forever. Since then, Copeland Scroll technology remains at the forefront
for HVACR applications, impressing contractors and original equipment manufacturers (OEMs)
with its superior efficiency, proven reliability and ease of installation.
6.Efficiency:
Approximately 35 percent of the electrical energy consumed each year in the United States is used by HVACR systems. Compressors
make up a vast majority of the energy used in air conditioning and refrigeration systems. That means compressor selection is key to
improving the overall efficiency of HVACR systems. The inherent design of Copeland Scroll compressors makes them a preferred choice
for more energy-efficient systems. In fact, Copeland Scroll compressors play a key role in helping the industry throught major transitions
like the 1992 move to a 10 SEER standard and the industry's shift in 2006 to a 13 SEER minimum. As the industry prepares for another regulatory
change - this time the phaseout of R-22 refrigerants in favor of the more environmentally friendly R-410A - it will benefit from the versatility and efficiency of scroll compressor technology.
7. Product qualification
Certificate, certification, patent certificate:
1)."Quality Management System Certification"
2)."Shenzhen Science and Technology Enterprise Certification"
3)."Refrigeration Equipment Air Conditioning Maintenance and Installation Enterprise Qualification Certificate"
8.Product qualification
Certificate, certification, patent certificate:
1)."Quality Management System Certification"
9.Shipping, Payment,Delivery and Packing
1) .Shipping:
1. For Sample order in stock, we aim to ship the compressor within 3 days.
2. For any Bulk order, generally we ship compressor in 10-15 working days after receiving deposit.
