| Modelnummer: | D6DL-2700 |
| Moq: | 1 stuk |
| Prijs: | discussed |
| Leveringstermijn: | 1-7 dagen |
| Betalingsvoorwaarden: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

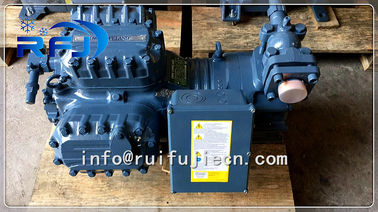

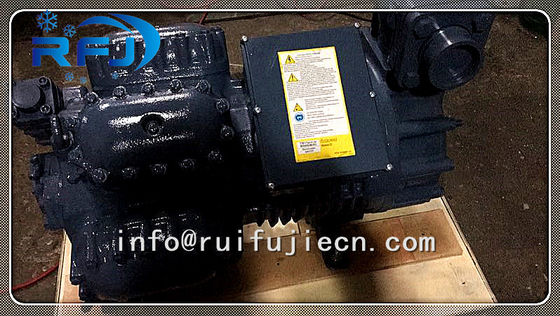

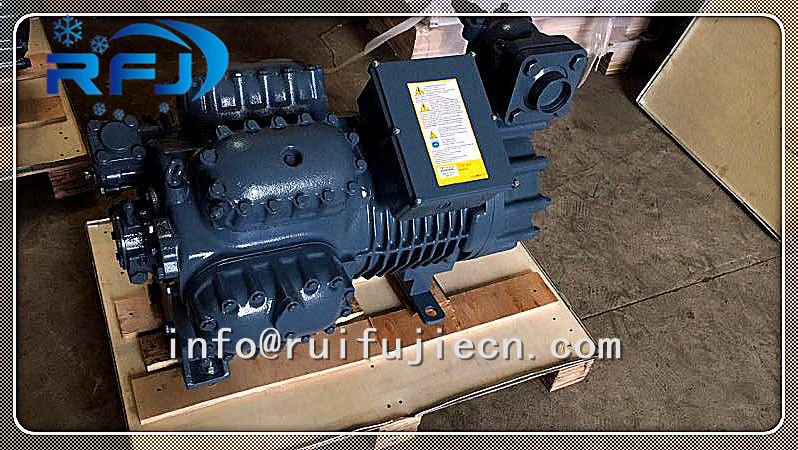

Semi-hermetische D6DL-2700 35 pk compressor Made in Belgium Compressor
| Cylindergetal: | 8 | |
| Verplaatsing [m3/h]: | 151 | |
| Gewicht [kg]: | 347 | |
| Oliebelasting [dm3]: | 7,7 | |
| Max. werkstroom [A]: | 91,6 | |
| Vergrendelde rotorstroom [A]: | 444 | |
| Stroomvoorziening [V/~/Hz]: | 400V/3/50Hz |
| metalen | inches | ||
| Zuigleiding: | 2 5/8" | ||
| Ontladingsleiding: | 1 5/8" |
Koelcapaciteit [kW]
| tc.te | - 35 | -30 | - 25 | - 20 | -15 | - 10 | - 5 |
| 30 | 24.08 | 32.02 | 41.35 | 52.17 | 64.57 | 78.65 | 94.48 |
| 35 | 21.87 | 29.71 | 38.92 | 49.59 | 61.80 | 75.65 | 91.24 |
| 40 | - | 27.10 | 36.17 | 46.67 | 58.68 | 72.29 | 87.61 |
| 45 | - | 24.17 | 33.08 | 43.38 | 55.17 | 68.54 | 83.56 |
| 50 | - | - | 29.61 | 39.70 | 51.26 | 64.35 | 79.08 |
| 55 | - | - | - | 35.60 | 46.90 | 59.71 | 74.11 |
| tc.te | - 35 | -30 | - 25 | - 20 | -15 | - 10 | - 5 |
| 30 | 15.53 | 17.90 | 20.15 | 22.21 | 24.00 | 25.46 | 26.51 |
| 35 | 15.80 | 18.46 | 21.03 | 23.42 | 25.56 | 27.38 | 28.80 |
| 40 | - | 18.85 | 21.75 | 24.49 | 27.00 | 29.20 | 31.02 |
| 45 | - | 19.02 | 22.27 | 25.38 | 28.27 | 30.87 | 33.11 |
| 50 | - | - | 22.54 | 26.04 | 29.34 | 32.36 | 35.03 |
| 55 | - | - | - | 26.42 | 30.14 | 33.61 | 36.74 |
| tc.te | - 35 | -30 | - 25 | - 20 | -15 | - 10 | - 5 |
| 30 | 35.56 | 38.19 | 40.81 | 43.29 | 45.51 | 47.34 | 48.65 |
| 35 | 35.86 | 38.85 | 41.87 | 44.78 | 47.45 | 49.77 | 51.61 |
| 40 | - | 39.30 | 42.75 | 46.11 | 49.28 | 52.12 | 54.50 |
| 45 | - | 39.49 | 43.38 | 47.23 | 50.92 | 54.30 | 57.26 |
| 50 | - | - | 43.70 | 48.07 | 52.29 | 56.25 | 59.82 |
| 55 | - | - | - | 48.55 | 53.35 | 57.91 | 62.12 |
| tc.te | - 35 | -30 | - 25 | - 20 | -15 | - 10 | - 5 |
| 30 | 539.48 | 707.15 | 900.50 | 1 120.65 | 1 368.71 | 1645!80 | 1953.04 |
| 35 | 510.80 | 683.24 | 881.66 | 107.20 | 1360 dollar.96 | 1644.07 | In 1957.64 |
| 40 | - | 650.52 | 854.60 | 1086.11 | 1346 miljoen.16 | 1635.87 | 1956.36 |
| 45 | - | 606.85 | 817.19 | 1055.26 | 1322.18 | 161908 | In 1947.07 |
| 50 | - | - | 767.29 | 1012.51 | 1286.89 | 1591.56 | In 1927.63 |
| 55 | - | - | - | 955.73 | 1238.16 | 1551.18 | In 1895.93 |
| tc.te | - 35 | -30 | - 25 | - 20 | -15 | - 10 | - 5 |
| 30 | 1.55 | 1.79 | 2.05 | 2.35 | 2.69 | 3.09 | 3.56 |
| 35 | 1.38 | 1.61 | 1.85 | 2.12 | 2.42 | 2.76 | 3.17 |
| 40 | - | 1.44 | 1.66 | 1.91 | 2.17 | 2.48 | 2.82 |
| 45 | - | 1.27 | 1.49 | 1.71 | 1.95 | 2.22 | 2.52 |
| 50 | - | - | 1.31 | 1.52 | 1.75 | 1.99 | 2.26 |
| 55 | - | - | - | 1.35 | 1.56 | 1.78 | 2.02 |
| Cylindergetal: | 8 | |
| Verplaatsing [m3/h]: | 151 | |
| Gewicht [kg]: | 351 | |
| Oliebelasting [dm3]: | 7,7 | |
| Max. werkstroom [A]: | 64,5 | |
| Vergrendelde rotorstroom [A]: | 357 | |
| Stroomvoorziening [V/~/Hz]: | 380-420V/3/50Hz |
| metalen | inches | ||
| Zuigleiding: | 2 5/8" | ||
| Ontladingsleiding: | 1 5/8" |
| De WHO kan gebruikmaken van: | Chiller / koelruimte |
| Voor welke verplaatsing: | 151 m3/h |
| Cylindergetal | 8 |
| Gewicht | 351 kg |
| Olieheffing | 7.7dm3 |
| Max.werkstroom | 64.5A |
| Vergrendelde rotorstroom | 357A |
| Stroomvoorziening | 380-420V/3/50Hz |
| Verbindingen zuigleiding | 2 5/8 inch |
| Verbindingsontladingslijn | 15/8 inch. |
| Pakket | Elke verpakking in een houten uitvoerdoos |
| koelmiddel | R134a |
| Grootte ((L*W*H) | 835*590*670 mm |
| Productietijd: | 7 tot 10werkdagenvoor beschikbare voorraden |
|
|
| Modelnummer: | D6DL-2700 |
| Moq: | 1 stuk |
| Prijs: | discussed |
| Verpakking: | houten verpakking |
| Betalingsvoorwaarden: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Semi-hermetische D6DL-2700 35 pk compressor Made in Belgium Compressor
| Cylindergetal: | 8 | |
| Verplaatsing [m3/h]: | 151 | |
| Gewicht [kg]: | 347 | |
| Oliebelasting [dm3]: | 7,7 | |
| Max. werkstroom [A]: | 91,6 | |
| Vergrendelde rotorstroom [A]: | 444 | |
| Stroomvoorziening [V/~/Hz]: | 400V/3/50Hz |
| metalen | inches | ||
| Zuigleiding: | 2 5/8" | ||
| Ontladingsleiding: | 1 5/8" |
Koelcapaciteit [kW]
| tc.te | - 35 | -30 | - 25 | - 20 | -15 | - 10 | - 5 |
| 30 | 24.08 | 32.02 | 41.35 | 52.17 | 64.57 | 78.65 | 94.48 |
| 35 | 21.87 | 29.71 | 38.92 | 49.59 | 61.80 | 75.65 | 91.24 |
| 40 | - | 27.10 | 36.17 | 46.67 | 58.68 | 72.29 | 87.61 |
| 45 | - | 24.17 | 33.08 | 43.38 | 55.17 | 68.54 | 83.56 |
| 50 | - | - | 29.61 | 39.70 | 51.26 | 64.35 | 79.08 |
| 55 | - | - | - | 35.60 | 46.90 | 59.71 | 74.11 |
| tc.te | - 35 | -30 | - 25 | - 20 | -15 | - 10 | - 5 |
| 30 | 15.53 | 17.90 | 20.15 | 22.21 | 24.00 | 25.46 | 26.51 |
| 35 | 15.80 | 18.46 | 21.03 | 23.42 | 25.56 | 27.38 | 28.80 |
| 40 | - | 18.85 | 21.75 | 24.49 | 27.00 | 29.20 | 31.02 |
| 45 | - | 19.02 | 22.27 | 25.38 | 28.27 | 30.87 | 33.11 |
| 50 | - | - | 22.54 | 26.04 | 29.34 | 32.36 | 35.03 |
| 55 | - | - | - | 26.42 | 30.14 | 33.61 | 36.74 |
| tc.te | - 35 | -30 | - 25 | - 20 | -15 | - 10 | - 5 |
| 30 | 35.56 | 38.19 | 40.81 | 43.29 | 45.51 | 47.34 | 48.65 |
| 35 | 35.86 | 38.85 | 41.87 | 44.78 | 47.45 | 49.77 | 51.61 |
| 40 | - | 39.30 | 42.75 | 46.11 | 49.28 | 52.12 | 54.50 |
| 45 | - | 39.49 | 43.38 | 47.23 | 50.92 | 54.30 | 57.26 |
| 50 | - | - | 43.70 | 48.07 | 52.29 | 56.25 | 59.82 |
| 55 | - | - | - | 48.55 | 53.35 | 57.91 | 62.12 |
| tc.te | - 35 | -30 | - 25 | - 20 | -15 | - 10 | - 5 |
| 30 | 539.48 | 707.15 | 900.50 | 1 120.65 | 1 368.71 | 1645!80 | 1953.04 |
| 35 | 510.80 | 683.24 | 881.66 | 107.20 | 1360 dollar.96 | 1644.07 | In 1957.64 |
| 40 | - | 650.52 | 854.60 | 1086.11 | 1346 miljoen.16 | 1635.87 | 1956.36 |
| 45 | - | 606.85 | 817.19 | 1055.26 | 1322.18 | 161908 | In 1947.07 |
| 50 | - | - | 767.29 | 1012.51 | 1286.89 | 1591.56 | In 1927.63 |
| 55 | - | - | - | 955.73 | 1238.16 | 1551.18 | In 1895.93 |
| tc.te | - 35 | -30 | - 25 | - 20 | -15 | - 10 | - 5 |
| 30 | 1.55 | 1.79 | 2.05 | 2.35 | 2.69 | 3.09 | 3.56 |
| 35 | 1.38 | 1.61 | 1.85 | 2.12 | 2.42 | 2.76 | 3.17 |
| 40 | - | 1.44 | 1.66 | 1.91 | 2.17 | 2.48 | 2.82 |
| 45 | - | 1.27 | 1.49 | 1.71 | 1.95 | 2.22 | 2.52 |
| 50 | - | - | 1.31 | 1.52 | 1.75 | 1.99 | 2.26 |
| 55 | - | - | - | 1.35 | 1.56 | 1.78 | 2.02 |
| Cylindergetal: | 8 | |
| Verplaatsing [m3/h]: | 151 | |
| Gewicht [kg]: | 351 | |
| Oliebelasting [dm3]: | 7,7 | |
| Max. werkstroom [A]: | 64,5 | |
| Vergrendelde rotorstroom [A]: | 357 | |
| Stroomvoorziening [V/~/Hz]: | 380-420V/3/50Hz |
| metalen | inches | ||
| Zuigleiding: | 2 5/8" | ||
| Ontladingsleiding: | 1 5/8" |
| De WHO kan gebruikmaken van: | Chiller / koelruimte |
| Voor welke verplaatsing: | 151 m3/h |
| Cylindergetal | 8 |
| Gewicht | 351 kg |
| Olieheffing | 7.7dm3 |
| Max.werkstroom | 64.5A |
| Vergrendelde rotorstroom | 357A |
| Stroomvoorziening | 380-420V/3/50Hz |
| Verbindingen zuigleiding | 2 5/8 inch |
| Verbindingsontladingslijn | 15/8 inch. |
| Pakket | Elke verpakking in een houten uitvoerdoos |
| koelmiddel | R134a |
| Grootte ((L*W*H) | 835*590*670 mm |
| Productietijd: | 7 tot 10werkdagenvoor beschikbare voorraden |
