Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|

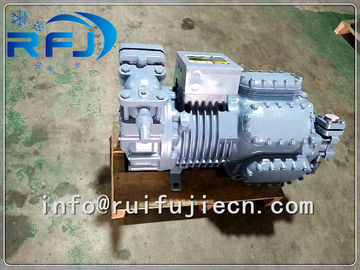

Plaats van herkomst: | Duitsland | Type: | Semi-hermetic koelingscompressor |
---|---|---|---|
Toepassing: | Koelingsdelen | Paardmacht: | 37HP |
Koelmiddel: | R404 R407C R134A | Cilindertelling: | 8 |
merk: | Copeland | Voeding: | 380-420V/3/50Hz |
Hoog licht: | ijskastcompressor,semi hermetische vergeldende compressor |
Model: D8SH-370 X
Cilindertelling: | 8 | |
Verplaatsing [m ³ /h]: | 151 | |
Gewicht [kg]: | 351 | |
Olielast [DM ³]: | 7,7 | |
Max. werkende stroom [A]: | 64,5 | |
Gesloten rotorstroom [A]: | 357 | |
Voeding [V/~/Hz]: | 380-420V/3/50Hz |
milimeters | duim | ||
Zuigingslijn: | 2 5/8“ | ||
Lossingslijn: | 1 5/8“ |
Technische gegevens
Cilindertelling: | 8 | |
Verplaatsing [m ³ /h]: | 151 | |
Gewicht [kg]: | 347 | |
Olielast [DM ³]: | 7,7 | |
Max. werkende stroom [A]: | 91,6 | |
Gesloten rotorstroom [A]: | 444 | |
Voeding [V/~/Hz]: | 400V/3/50Hz |
milimeters | duim | ||
Zuigingslijn: | 2 5/8“ | ||
Lossingslijn: | 1 5/8“ |
tc te | -35 | -30 | -25 | -20 | -15 | -10 | -5 |
30 | 24.08 | 32.02 | 41.35 | 52.17 | 64.57 | 78.65 | 94.48 |
35 | 21.87 | 29.71 | 38.92 | 49.59 | 61.80 | 75.65 | 91.24 |
40 | - | 27.10 | 36.17 | 46.67 | 58.68 | 72.29 | 87.61 |
45 | - | 24.17 | 33.08 | 43.38 | 55.17 | 68.54 | 83.56 |
50 | - | - | 29.61 | 39.70 | 51.26 | 64.35 | 79.08 |
55 | - | - | - | 35.60 | 46.90 | 59.71 | 74.11 |
tc te | -35 | -30 | -25 | -20 | -15 | -10 | -5 |
30 | 15.53 | 17.90 | 20.15 | 22.21 | 24.00 | 25.46 | 26.51 |
35 | 15.80 | 18.46 | 21.03 | 23.42 | 25.56 | 27.38 | 28.80 |
40 | - | 18.85 | 21.75 | 24.49 | 27.00 | 29.20 | 31.02 |
45 | - | 19.02 | 22.27 | 25.38 | 28.27 | 30.87 | 33.11 |
50 | - | - | 22.54 | 26.04 | 29.34 | 32.36 | 35.03 |
55 | - | - | - | 26.42 | 30.14 | 33.61 | 36.74 |
